Assessment of the Heavy Metals around two Municipal Solid Waste (MSW) Dumpsites, Egypt

By Abdel-Monem M. Ahmed¹, Salah M. A. H.² and Ahmed F. El Adl³*
March 2011

  1. Department of Chemistry, Faculty of Science, Alexandria University, Egypt
  2. Department of Chemistry, Faculty of Science, Zagazig University, Ash Sharqiyah, Egypt
  3. Egyptian Environmental Affairs Agency (EEAA), Alexandria 20112, Egypt
    * Corresponding Author
Abstract
Heavy metals and physicochemical characteristics of the different sites of the municipal solid waste dumpsite at two Municipal Solid Wastes (MSW) Dumpsites, Alexandria, Egypt were investigated.
The levels of heavy metals were measured at different sites with different distances and directions from two dumpsites in Alexandria for the ambient air and soil. The results indicated a steady decrease in the concentrations of total Cd, Cu, Ni, Cr and Zn in the ambient air at Abis area with distance from the municipal solid waste (MSW) dumpsite. The mean maximum recorded levels were 1.43, 2.95, 2.71, and 2.95 and 2.35 m-3 for Cd, Cu, Ni, Cr and Zn respectively, while the minimum levels were 0.10, 0.32, 0.41, 0.30 and 2.10 m-3 respectively in Abis area. Similar trends were found at El-Montaza district. Levels of heavy metals in soil were measured in 19 sites near and around the old (MSW) dumpsite at four directions. It was found that the sites located in the southeast direction from (MSW) dumpsite had the highest levels of total metals in soils. The soil of site close to the (MSN) dumpsite at Abis contained the highest levels of total metals which were 4.90, 95.20, 11.80, 10.20 and 110.0 g-1 for Cd, Cu, Ni, Cr and Zn respectively. Similar trend was found at El-Montaza district.

Keywords: Heavy metals, Municipal solid waste, Soil

Introduction

Atmospheric pollution is of a major public health concern in many large cities worldwide. However, in many cases only a little attention has been given to this issue in developing countries. Example is the case of Alexandria city in Egypt where two municipal solid waste (MSW) dumpsites were located at the east and west directions of the city. One of the main activities leading to this problem includes deposition of compost and incineration of MSW, which contain high levels of heavy metals. Such activities tend to increase the elemental background levels in the surrounding agricultural land driving to adverse temporal and/or spatial variations of heavy metals levels in soils.

Atmospheric deposition of anthropogenic derived chemicals is an important source of environmental pollution. It contributes to the load of pollutants in urban runoff [1, 2].

Municipal Solid Waste management depends on the characteristic of the solid waste including the gross composition, moisture contents, average particle size, chemical composition and density, in which knowledge of these, usually helps in disposal plans [3, 4].

In some areas, the atmospheric deposition of pollutants has reached levels which are toxic to human and organisms. Therefore, the measurements of the fluxes of pollutants from the atmosphere in urban and non urban environments can aid in the assessment of air quality and can be used to determine spatial, temporal and seasonal variability of pollution sources [5].

Soil constitutes part of vital environmental, ecological and agricultural resources that have to be protected from further degradation as on adequate supply of healthy food needed for the world’s increasing population. Heavy metals can affect both the yield of crops and their composition. Thus determination of the elemental status of a cultivated land has to be made in order to identify yield-limiting deficiencies of essential micronutrients of plants grown on polluted soils [6, 7].

Some heavy metals are essential in trace amounts, namely Zn, Cu and Mn for plants and in addition Co and Ni for animals. On the other side, Cd has not been known to have any function for either plants or animals [8]. High concentrations of metals become toxic to plants and possibly are dangerous to human health. A number of cases of health problems related to environmental Cd poisoning have been reported [9]. Some of the metals are phototoxic and some are toxic to both plants and animals through their entry into the food chain [10].

Baseline data for the occurrence of heavy metals as contaminants are needed as one of the criteria for assessment of critical heavy metals levels in agricultural soils. Over the last two decades, the study of the sources, fluxes and pathways of heavy metals on both national and international research communities a response of a great concern about pollution and possible health impacts [11, 12].

Environmental pollution data tend to vary extensively and to be subjected to various types of uncertainties due to several factors such as distance from pollution sources and pathways, natural background variation, pollution buildup or degradation over time. Environmental variability depicts the exact variant pollution levels between population units [13].

The objectives of this study were to, (i) assessing the levels of heavy metals in air, soil distributed in the surrounding environment of two old MSW dumpsites at Alexandria city in Egypt, (ii) comparing these levels at both MSW dumpsites in west and east of Alexandria, (iii) assessing the relationship between heavy metals in soils and corresponding vegetations and (iv) defining the contribution of air pollution on soil pollution.

Materials and Methods

Studied Areas

There are two main dumpsites for Municipal solid waste MSW at Alexandria city:

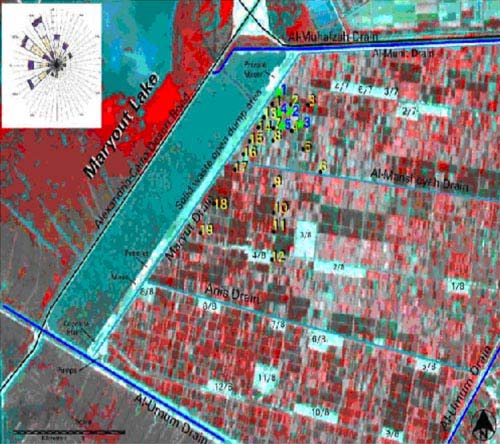

Both are surrounded by an agricultural area as shown in Fig. 1 and 2.

Abis dumpsite

has an area approximately 100.000 m2 and is surrounded by Maryout Lake from the northwest and northeast. The agricultural area lies to the south, southwest and southeast of the dumpsite. Some private Mixer and project company are located on the main road leading to the dumpsite. Alexandria-Cairo desert road is located about one km to the north of the dumpsite. The maximum height above the ground of municipal solid on site is about 5 meters. The waste is usually subjected to primitive and random sorting by Scavengers. Self ignition has been frequently occurred and a lot of pollutants were dispersed near by the surroundings as shown in (Fig. 3).

El-Montaza dumpsite

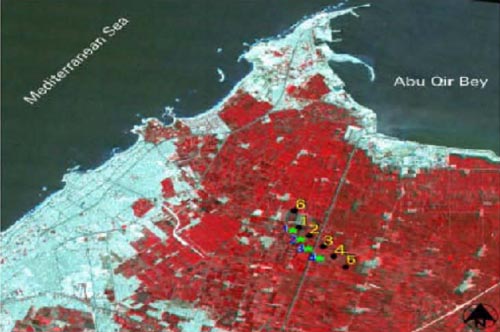

is located to the east of Alexandria city as shown in (Fig. 2). It is surrounded by the agricultural area from most directions except some scattered buildings and schools to the north. An old compost plant is located close to the dumpsite. A yearly average wind direction in Alexandria City is northwest, so the anticipated affected area at the two dumpsites is the southeast as, shown in Fig. 1.

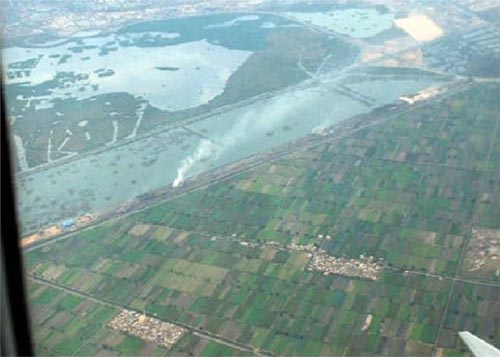

Figure 3

The self ignition at the municipal solid waste dumpsite in Abis area, Alexandria, Egypt, and its impact on the surrounding environmental.
Figure 3

Sampling Program

Ambient Air Sampling

This was carried out as follows:

Soil Sampling

Surface soil samples (0-10 cm) from Abis area have been collected from 19 sites from the agricultural area as shown in Fig. 1. The sampling sites covered the following directions: west, east, south, southwest and southeast. The samples were collected at different distances from the dump site, the longest   distance was 2000 m southwest the dumpsite, in addition to one site very close to the dumpsite. Six sites have been selected for soil sampling at south El-Montaza downwind the dumpsite. From sites were selected at the southeast, one close to the dumpsite and the last one was to the north (upwind) for the comparison as shown in (Fig. 2). The collected soil samples were air dried in a clean room to avoid contamination and ground to pass through 2 mm sieve and stored in polyethylene bags for analysis.

Analytical Procedures

Aerosol

The fiber glass filter paper was placed in a desecrator for 48 hrs then its weight was measured. For the determination of the concentration of total Cd, Pb, Ni, Cr and Zn, the pre-weighed filter paper was treated with one ml concentrated Hydrofluoric acid then 10 ml concentrated nitric  acid and 5 ml per-Chloric acid and heated (80-120) for  5 hrs. To complete the digestion process, the matrix was digested three times and the sample was evaporated to dryness. The residues were dissolved in 1% nitric acid, cooled, filtered and made to 50 ml in a volumetric flask with glass double distilled water. A blank filter paper was similarly digested and the same procedure was carried out. The concentrations of heavy metals were measured by, Perkin-Elmer model 5000, an atomic absorption spectrophotometer, AAS, [15].

Soil

The soil particulates samples were air dried and then passed through a 1 mm stainless steel sieve. One gram of each soil sample was put into 150 ml conical flask, a mixture of HNO3: HCLO4: HF the ratio 3:1:3 was added [16].The mixture was placed on a hot plate for three hours at 80°C. The digest was filtered into 100 ml standard flask and made to mark with de-ionized water. 2 g of plant samples were dry-ashed in an oven. The ash content was completely dissolved in 15 ml of 20% HNO3 [17]. The digest was filtered into 100 ml standard flask and made up to mark with de-ionized water. Heavy metals were analyzed for both in the sediment and plant samples using atomic absorption spectroscopy, AAS (Perkin-Elmer model 5000).

Results and Discussion

Heavy metals in the ambient air

The average concentrations of heavy metals (g m-3) in atmospheric particulate matter near and around the two MSW are shown in Tables 1 and 2. The results indicated that the highest concentration levels were recorded for the site close to the dumpsite at Abis and El-Montaza. The mean maximum recorded levels were 1.43, 2.95, 2.71, 2.95 and 2.35 g m-3 for Cd, Cu, Ni, Cr and Zn, respectively in Abis area and were 0.73, 2.01, 1.85, 2.10 and 2.35 g m-3 respectively, for the same metals in El-Montaza area. These levels are high and could be originated from anthropogenic and industrial activities [18, 19]. These high recorded levels found in the present in study are hundred times higher than the levels of these metals in an unpolluted remote area and reached 76 times in the case of Cr in the rural area. A steady decrease in the concentrations of Cd, Cu, Ni, Cr and Zn were found with distance from the MSW dumpsite. The highest concentrations were found close to the MSW dumpsites for all the measured metals, while the lowest levels were recorded for the sites located for away from the dumpsites. It is clear that the MSW dumpsite is the main source of these heavy metals in this area. The suspended particles and the self ignited products with its contents of metals are transported and deposited on soil with the distance.

Table 1 · The average values of total heavy metals concentration (μg m-3) in the suspended particulate matter (aerosol) at Abis in air samples collected at different sites downwind direction of the soil municipal solid waste dumpsite (MSW)
Site description Heavy metals concentrations, (μg m-3)
Cd Cu Ni Cr Zn
Close to dumpsite 1.43 2.95 2.71 2.95 2.35
200 m, southeast the dumpsite 1.30 2.10 2.15 1.75 2.15
500 m, southeast the dumpsite 0.55 0.86 0.73 0.66 2.20
200 m, south the dumpsite 0.60 1.65 1.35 1.20 2.40
300 m, south the dumpsite 0.10 0.32 0.41 0.30 2.10
Table 2 · The average values of total heavy metals concentration (μg m-3) in the suspended particulate matter (aerosol) at El-Montaza in air samples collected at different sites downwind direction of the soil municipal solid waste dumpsite (MSW)
Site description Heavy metals concentrations, (μg m-3)
Cd Cu Ni Cr Zn
Close to dumpsite 0.73 2.01 1.85 2.10 2.30
200 m, southeast the dumpsite 0.44 1.40 1.35 1.55 2.20
300 m, southeast the dumpsite 0.15 0.90 1.00 0.95 1.90
500 m, southeast the dumpsite 0.08 0.20 0.20 0.25 0.55

There are two possible pathways for metals to be suspended in the aerosol. The first one is the transport of the fine material enriched with metals from MSW dumpsite. The second is the emission of heavy metals from the uncontrolled self ignition and the incineration products from the MSW dumpsites. The incineration residue including metals is suspended to the aerosol and transported by winds. The MSW consists of a wide variety of organic (combustible) and inorganic (non-combustible) products ranging in size and composition from dust particles to old furniture and appliances [20]. The percentage of combustible material in MSW reaches about 75% of the total. It is obvious that the main air pollutants from municipals solid waste are acid gases, dioxins and heavy metals. Although a great deal of these pollutants are released in the form of fly ash as a product of incineration, there is a minor contribution from the other scattered sources such as the Petro jet activity and the Mixers at Abis. It is therefore, expected to find these metals enriched in the atmosphere at these two areas; (Abis and El-Montaza) as a result of the presence of the MSW dumpsites.

It should be mention that the levels of heavy metals in the aerosol of Abis were higher than in those recorded of El-Montaza. A ratio between the levels of heavy metals in the aerosol of the site close to the dumpsite and at 500 m downwind the dumpsite, of Abis and El-Montaza, are shown in Table 3.

Table 3 · The ratios of heavy metals between that of Abis and that El-Montaza at site close to the dumpsite and at 500 m southeast downwind direction
Site description Heavy metals
Cd Cu Ni Cr Zn
Close to dumpsite 1.96 1.47 1.46 1.40 1.02
500 m, southeast the dumpsite 6.88 4.3 3.65 2.64 4.00

Abis had Cd level two times higher than El-Montaza at the site close to the dumpsite and was the highest among the other metals while Zn was the least (1.02). The ratios of Cu, Ni and Cr metals varied from 1.43 to 1.47. The same trend occurred at the site 500 m downwind the dumpsite, but the ratios were much higher and reached 6.88 times for Cd in Abis compared to El-Montaza. The ratios of Cu, Ni, Cr and Zn metals varied between 2.64 to 4.30 times. The increase in the ratio between the levels of heavy metals of both areas at 500 m downwind the dumpsite revealed that there may be another sources contributing at Abis area. The obtained results showed that the aerosol which originated from the municipal solid waste were deposited close to the dumpsite while which are transported to longer distances are originated from the residue of the self incineration and from the other activities found near by the dumpsite at Abis. The differences in the levels of heavy metals, at both areas, were attributed to other sources found around the dumpsite at Abis area where the Petro jet Company is and the Mixers are existing active. However, the MSW dumpsites still the main sources and main contributor of heavy metals load especially for the sites close to the dumpsite.

Levels of Metals in Soil

Abis

Levels of heavy metals in soils collected from 19 sites near and around the old MSW dumpsite are presented in Table 4. The samples were taken along four directions: south, southeast, southwest and east from the dumpsite in addition to one sample very close to the dumpsite. The results indicated that this area is highly polluted by heavy metals and is exposed to serious sources of pollution. The results also indicated that there is a decrease in heavy metals concentrations with increasing distance from the dumpsite. It is clear that the sites located at the southeast from the dumpsite had the highest levels of metals as compared with the sites located at the other directions. Site No. 1, which is close to the dumpsite, had the highest levels of metals relative to all other sites and is heavily polluted. These results are highly correlated with the meteorological parameters and with the wind roses which indicated that the dominant wind direction is the northwest, as a result, the affected direction will be the southeast, however, the other two directions are subjected to pollution by this source most of the year as indicated from the current wind roses.

Table 4 · The average values of the amounts of total heavy metals concentration (μg m-3) in the soils collected at different sites downwind old municipal solid waste dumpsite (MSW) in Abis
Site description Heavy metals concentrations, (μg m-3)
Cd Cu Ni Cr Zn
1 Close to dumpsite 4.90 95.20 11.80 10.20 110.00
2 200 m, east the dumpsite 4.20 82.00 9.30 9.10 95.00
3 500 m, east the dumpsite 3.85 73.8 8.40 8.25 90.00
4 500 m, southeast the dumpsite 3.95 81.8 8.35 9.15 89.10
5 700 m, southeast the dumpsite 3.55 59.50 7.85 8.30 87.00
6 1000 m, southeast the dumpsite 2.50 54.60 7.50 8.00 86.00
7 300 m, south the dumpsite 3.80 80.10 8.20 8.80 91.00
8 500 m, south the dumpsite 3.70 74.50 8.00 8.60 87.50
9 1200 m, south the dumpsite 1.00 48.20 7.20 8.50 80.00
10 1500 m, south the dumpsite 1.35 44.50 7.15 8.40 80.00
11 1700 m, south the dumpsite 1.00 42.80 6.95 8.20 80.00
12 2000 m, south the dumpsite 0.50 40.20 7.00 8.00 77.50
13 200 m, southwest the dumpsite 3.95 80.50 8.90 10.00 90.00
14 300 m, southwest the dumpsite 3.45 77.80 8.10 4.10 86.00
15 500 m, southwest the dumpsite 3.40 73.50 7.70 8.65 81.50
16 700 m, southwest the dumpsite 2.15 74.10 7.60 8.00 80.00
17 1000 m, southwest the dumpsite 1.10 61.10 7.20 7.80 72.00
18 1500 m, southwest the dumpsite 0.85 50.00 7.00 7.60 70.15
19 2000 m, southwest the dumpsite 0.20 42.50 6.75 7.45 69.50

This result agreed which other studies, which reported that the concentrations of total heavy metals in soil decreased with increasing distance from the disposal sites of the tannery and the textile industries in Dkaka city, Bangladesh [21]. Similarly, another study showed that surface accumulation of heavy metals in soils may result from atmospheric input in the southwestern region being exposed to air pollution from Great Britain and central Europe [22]. In this respect, it was argued that the soils of southwest France have been received comparable annual inputs of metals since the dawn of industrialization [23]. Moreover, monitoring of heavy metals deposition onto soils in two locations in UK showed that large amount of metals are entering the soil annually [24]. The results of our study indicated that the lowest recorded levels were found in soils at Site No. 19 (2000 m southwest the dumpsite) while the highest recorded levels were found in soils at Site No. 1 (close to the dumpsite). This indicated that the main source is the dumpsite. Comparing these levels with the background levels of heavy metals of unpolluted soils in Egypt and other soils around the world indicated that Cd, for instance, was ten times higher than the background level [6]. In addition, the levels of all other metals were higher than the background levels except for zinc, which was very close to the background levels in the Egyptian soil [6, 11].

El-Montaza

Six sites have been selected for soil sampling and the obtained levels of heavy metals are shown in Table 5. The highest levels were recorded in soils of the site No. 1 close to the dumpsite and the lowest levels were found in soils of site No. 6, (200m north the dumpsite). In general, these is a tendency for decreasing the levels of heavy with increasing distance from the dumpsite as shown in Table 5.

Table 5 · The average values of heavy metals concentration (μg m-3) in the soils collected at different sites downwind municipal solid waste dumpsite (MSW) in El-Montaza
Site description Heavy metals concentrations, (μg m-3)
Cd Cu Ni Cr Zn
1 Close to dumpsite 4.50 71.90 11.50 10.65 105.90
2 200 m, southeast the dumpsite 4.15 65.20 9.20 8.65 96.00
3 500 m, southeast the dumpsite 3.60 60.10 8.40 8.15 86.50
4 700 m, southeast the dumpsite 2.90 51.60 7.95 8.00 79.90
5 1000 m, southeast the dumpsite 1.15 40.50 7.00 7.25 77.90
6 200 m, north the dumpsite 0.30 37.50 6.25 7.10 73.60

Comparing the obtained results with those obtained with Abis area, showed similar patterns where the highest level was found close to the dumpsite and these is a continuous decrease, of the levels of metals, with increasing distance from the dumpsite at both areas. The recorded levels of Cd, Cu, Ni and Cr were higher than the background levels in the Egyptian soils taking the same trend at Abis area [6, 11]. Zinc levels still similar to that obtained at Abis area and there was no high increase within this area. The only difference between Abis and El-Montaza is that the recorded levels of heavy metals at Abis area were higher than obtained at El-Montaza area. This could be due to the other pollution sources found at Abis area, including the cement company and other petroleum companies near Abis area which is a serious source of their metals [25].

Conclusion

According to these results, the recommendations urgently required are:

References

  1. James, S.L., G. Hoffman, J.G. Hoffman, J.L. Fasching and G. James, 1990. Sources of petroleum hydrocarbons in uban rnoff. Wayer, Air and Soil Pollut., 52: 1-22.
  2. Jaffe, R., A. Cabrera, H. Carrero and J. Alvarado, 1993. Organic compounds and Heavy metals in the atmosphere of the city of Caracas, Venezuela. Atmospheric Deposition. Water, Air and Soil Pollut, 71: 315-330.
  3. Sally W, 2000. Contrl of Municipal Solid Wastes. Oxford Univer. Press, Oxford 6th eds. 642.
  4. O. O. Ogundiran; T. A. Afolabi, 2008. Int. J. Environ. Sci. Tech., 5 (2), 243-250.
  5. Howard, B.R., 1987. Trace metals precipitation in swedem. Water, Air and Soil Pollut., 36: 349-364.
  6. Elsokkary, I.H. and J . Lag, 1980. Status of some trace elements in Egyption soils and in wheat grains. Beitrage trop. Landwirtsch. Veterinarmed. 18:35-47.
  7. Alloway, B.J., 1990. Heavy Metals in Soils, John Wiley and Sons, Glasgow: Blackie, 339.
  8. Greenland, D.J. and M.H.B. Hayes, 1981. The Chemistry of soil processes. John Wiley and Sons Ltd., 593-619.
  9. Singh, B. R., E. Steinnes, I.R. LaI and B. Stevart, 1994.Soil processes and water quality, Lewis Publishers, Chelea, Mich, PP: 233-271.
  10. Roads, F.M., S.M. Olson and A. Manning, 1989. Copper toxicity in tomato plants. J . Environ. Qual., 18:159.
  11. Elsokkary, I.H., 1996. Synopsis of contamination of agricultural ecosystem by trace elements: An Emerging environmental problem. Egypt. J. Soil Sci., 36: 1-22.
  12. Chrysanthus, C.S.R., 1996. Evaluating baseline data for trace elements pH, organic matter content and bulk density in agricultural Soils in Nigeria. Water, Air and Soil Pollut., 86:13-34.
  13. Gilbert, R.O., 1987. In statistical methods for environmental pollution monitoring, van Nostrand. Reinhold Company, New York, 10.
  14. Garland, J.A. and K. W. Nickolson, 1991. A review of methods for sampling large airborne particles and associated radioactivity. J. Aerosol. Sci., 22: 479-499.
  15. Tripathi, A., 1994. Air borne lead Pollution in the city of Varanasi, India. Atmos. Environ., 28: 2317-2323.
  16. Nwajei PE, Gagophein PO 2000. Distribution of heavy metals in the sediments of Lagos Lagoon. Pak. J. Sci. Ind. Res. 43: 338-340.
  17. Amusan AA, Ige DV, Olawale R 2005. Characteristic of Soil and Crop uptake of metals in municipal waste dump sites in Nig. J. Human Ecol. kamla Rja 1(2):167-171
  18. Molnar, A. and E. Meszaros, 1993. Elemental Composition of atmospheric aerosol particles under different conditions in Hungary. Atmosph. Environ., 27: 2457-2461.
  19. Fildago, M.R., J. Meteos and J. Garmendia, 1988. The origin of some elements contained in the aerosols of solamanco (Spain). Atmosph. Environ., 22: 1495-1498.
  20. Desnuson, R.A. and E.K. Silbergeld 1988. Risks of MSW Incineration: An Environmental Perspective. Risk Analysis, 8: 3.
  21. Abul Kashem, M.D. and B.R. Singh, 1999. Heavy metals concentration of soil and Vegetation in the vicinity of industries in Bangladesh Water. Air and Soil Pollut., 115: 347-361.
  22. Esser, K.B., 1996. Reference concentrations for heavy metals in Mineral soils, oat and orchard grass (Dactylis glomerata) from three agricultural regions in Norway. Water, Air and Soil Pollut., 89: 375-397.
  23. Saur, E. and C. Juste, 1994. Enrichment of trace elements from long-range aerosol transport in sandy podzolic soils of south waste France. Water, Air and Soil Pollut., 73: 235-246.
  24. Merrington, G. and B.J. Alloway, 1994. The flux of Cd, Cu, Pb and Zn in Mining Polluted soils. Water, Air and Soil Pollut. 73: 333-344.
  25. Mohamed Rashad and Elsayed A. Shalaby, 2007. Dispersion and Deposition of Heavy Metals around Two Municipal Solid Waste (MSW) Dumpsites, Alexandria, Egypt. American-Eurasian J. Agric. & Environ. Sci. 2 (3): 204 -212.

***
